Innovative Eyewear

Client: Planet Lighting Limited
Project: EyePower Red Glasses

Customer Requirements

EyePower contacted White Horse CAD to seek advice on modifying the body of their innovative eyewear, which employs electronics to improve eye health.

How We Helped

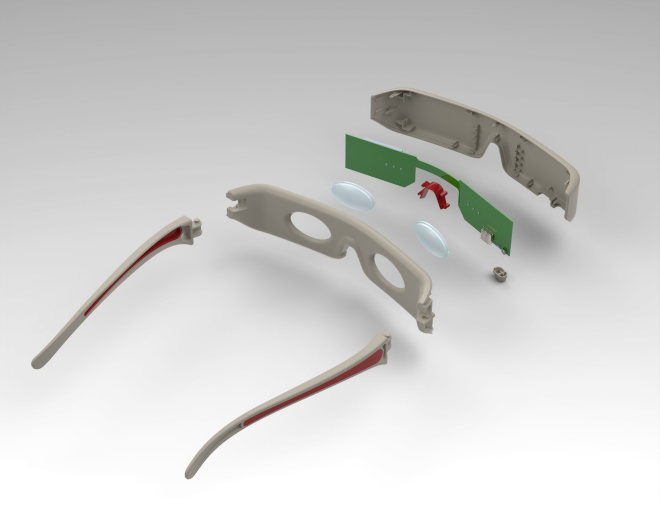

We worked with existing CAD data to modify the geometry, making the concept design suitable for injection moulding. The concept had been tried and tested using 3D prints. We were careful only to modify features that would not affect the aesthetics of the design or the internal connections with the electronic components.

Some internal features needed to be modified to ensure suitable draft angles for injection moulding. This also eliminated any geometry that was not suitable for the process. The CAD files we received were not native SolidWorks data, but we were able to modify the underlying geometry using advanced modelling techniques.

Deliverables

• 3D files for manufacture
• 3D CAD data (STEP & Parasolid) for each injection moulded part and over-moulded assembly.

---

Customer Testimonial

Having spent many months with two other CAD designers on a new product concept I was losing confidence in their ability to resolve manufacturing issues.

I approached Tim at White Horse CAD to ascertain whether his company was up to the job. Within minutes, I realised I had made the right choice.

Tim reassured me that all the outstanding issues could be solved relatively easily, but he also identified many other issues that previous designers had missed. Once completed, he then liaised with the injection mould tool engineers to ensure everything would go smoothly in production.

It is no exaggeration to say that without Tim’s input the final manufactured product would have been seriously inferior to the one he delivered. When it comes to future product designs Tim will be our man!

— Stephen Allen, Planet Lighting Limited
